Aluminium alloy 90-degree turbine elbow for lateral engine positioning in modified vehicles

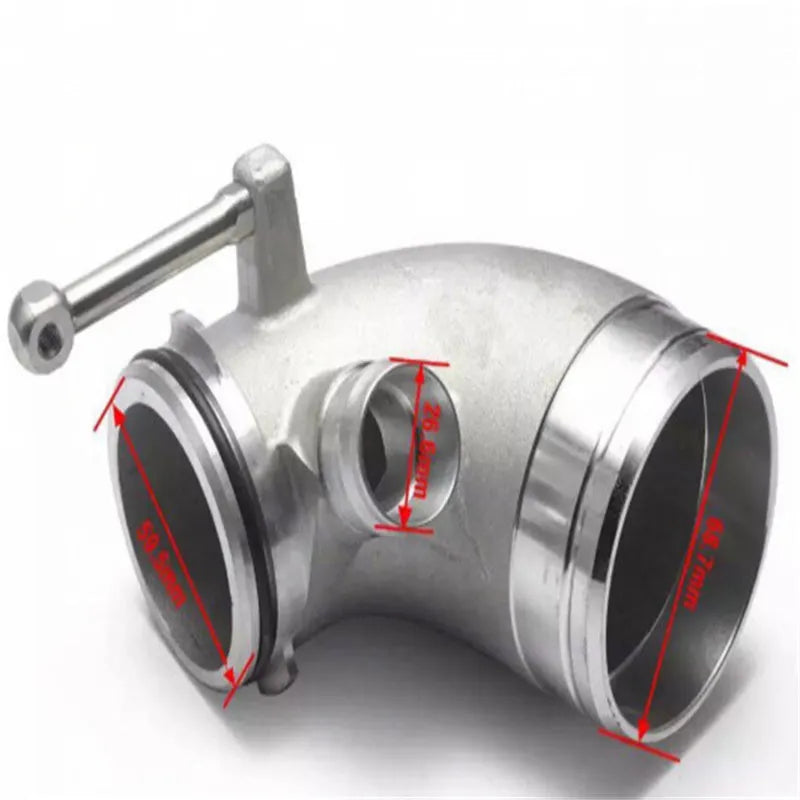

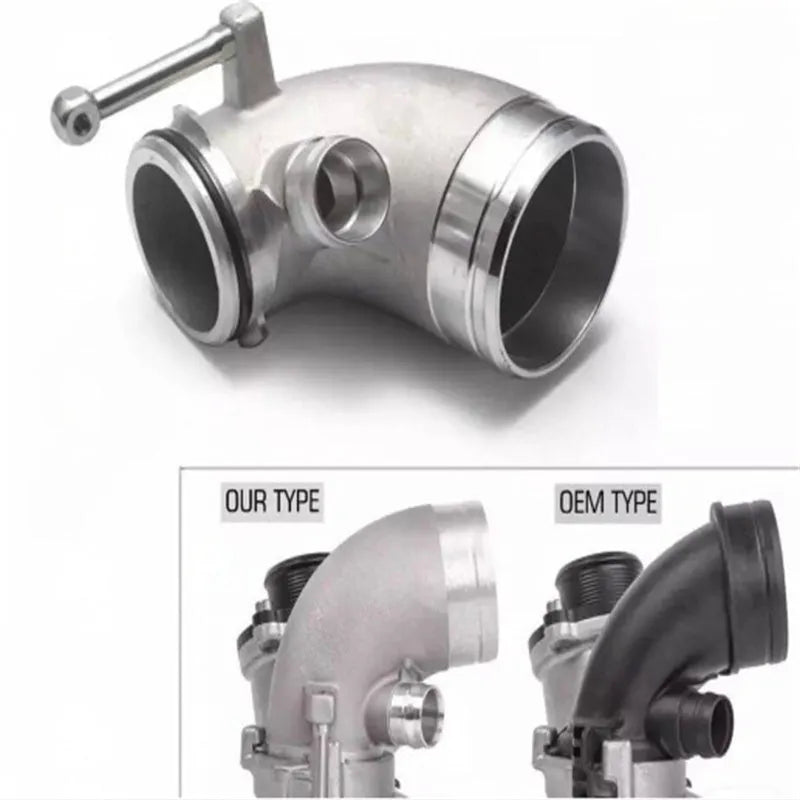

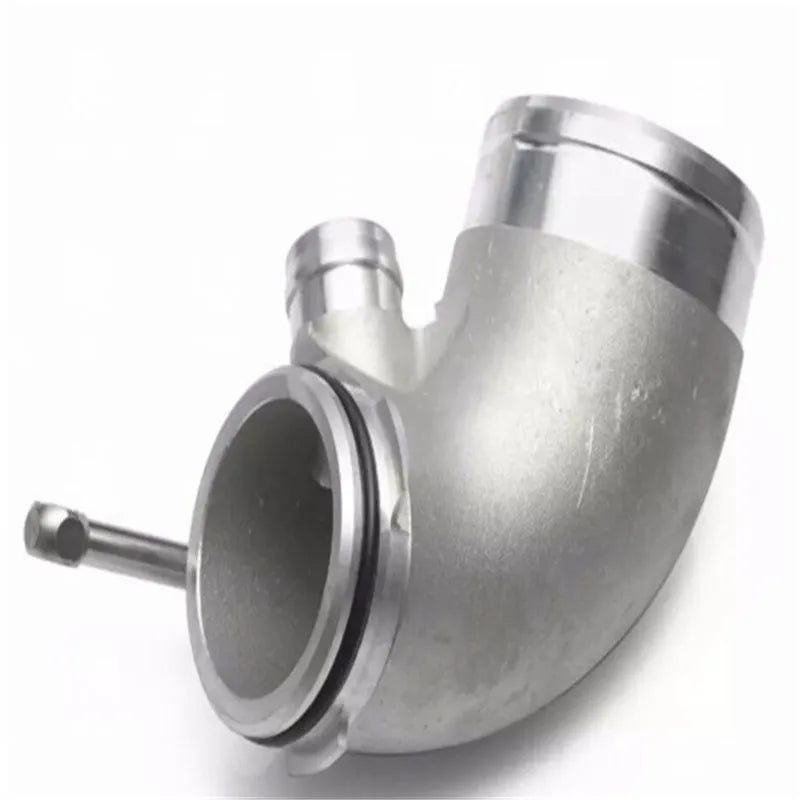

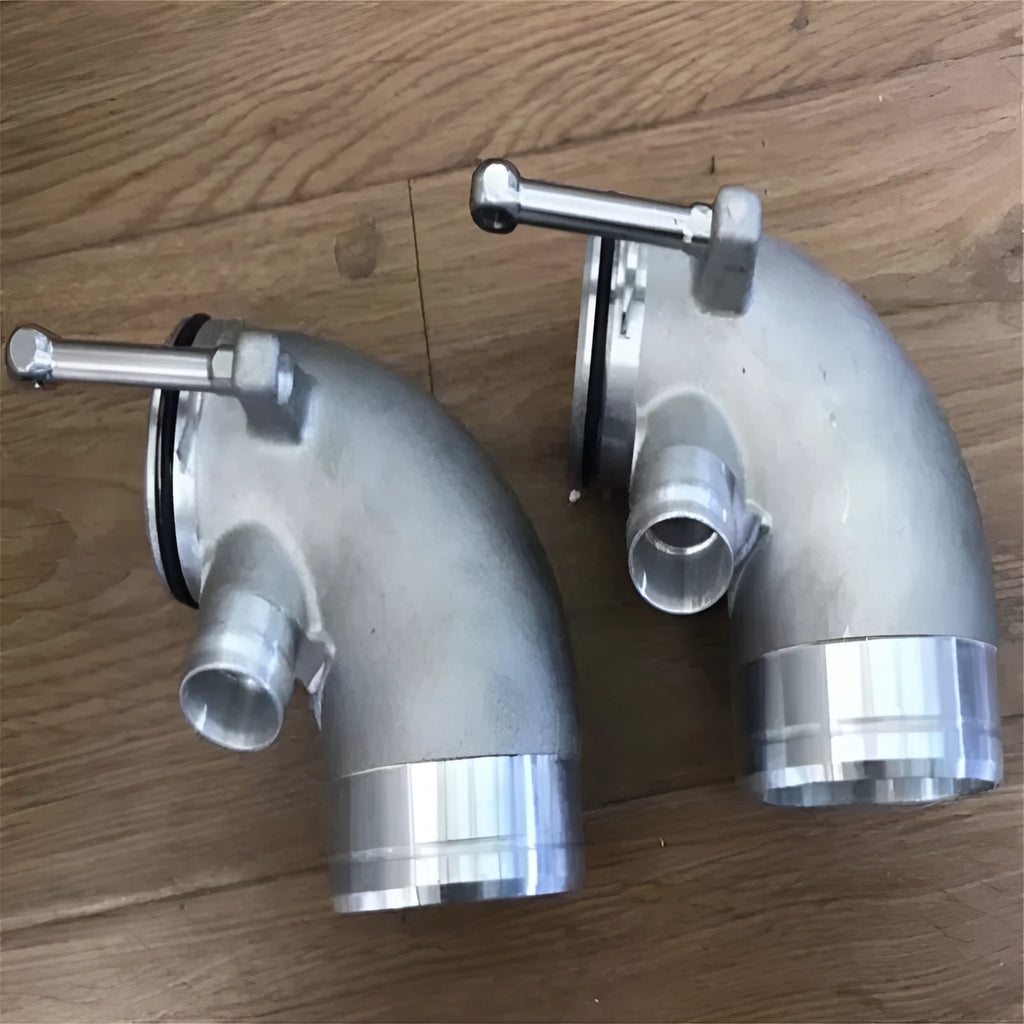

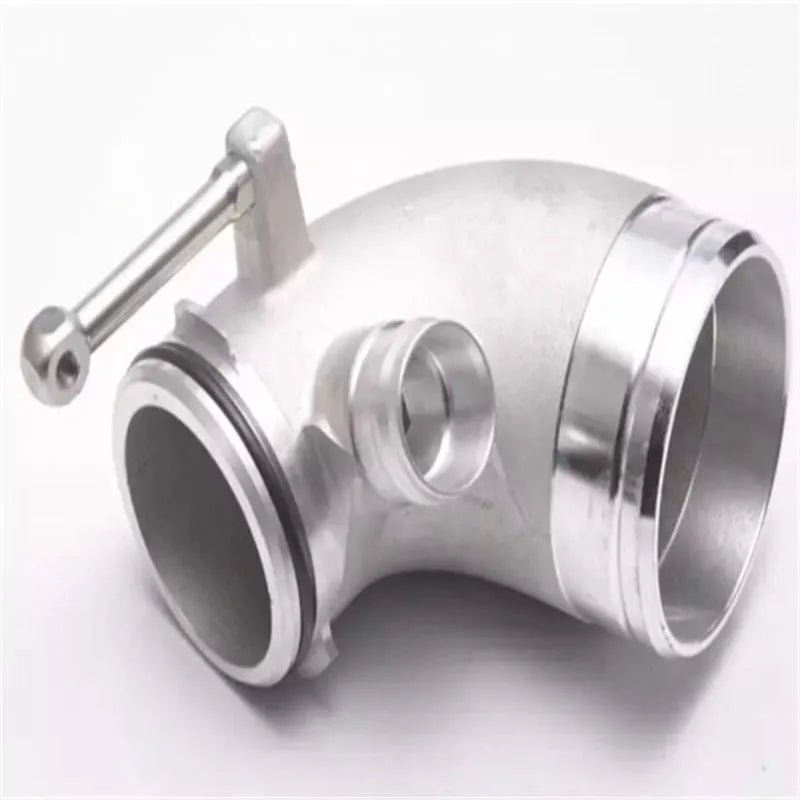

This specialised automotive component provides a critical connection point in turbocharger and intercooler systems where lateral engine positioning requires a precise 90-degree turn in the airflow path. Designed as a replacement for restrictive factory piping, the plus-sized aluminium alloy elbow facilitates improved airflow through its smooth-bore construction and integrated design. Unlike assembled systems with multiple welds, this one-piece unit eliminates potential weak points while maintaining the structural integrity needed for high-temperature engine bay environments. The anodised finish visible in product images offers enhanced surface protection against corrosion from heat and road contaminants.

Features and Construction

The elbow's design focuses on practical improvements over standard automotive piping components, with specific adaptations for modified vehicle applications.

Material and Build

Manufactured from aluminium alloy using integrated moulding techniques, this component forms a single continuous piece without welded joints. This construction method reduces potential leakage points that can occur at weld seams under thermal cycling and vibration. The aluminium material provides a balance of lightweight properties with sufficient strength for turbocharger applications, while its natural thermal conductivity helps dissipate heat from charged air passing through the system.

Size and Practical Fit

Described as 'plus-sized' relative to standard components, the elbow offers increased internal diameter to accommodate higher airflow volumes in performance applications. The 90-degree angle is specifically configured for lateral engine positioning, where the turbocharger or intercooler placement requires a sharp directional change in the intake or charge pipe routing. This angled design allows for cleaner installation in tight engine bays compared to multiple straight sections connected with silicone couplers.

Uses and Placement

The elbow serves a specific role in modified automotive systems where standard factory components cannot accommodate aftermarket upgrades or alternative engine layouts.

Event or Professional Use

In motorsport or performance tuning applications, this component allows for custom turbocharger and intercooler installations where lateral-mounted engines require precise piping solutions. The welding-free construction provides reliability under sustained high boost pressures and temperature fluctuations during track use or competitive events. The anodised finish maintains appearance in visible engine bay setups while offering additional protection against environmental factors.

Everyday Home Use

For modified road vehicles, this elbow enables cleaner aftermarket turbo system installations where factory routing proves restrictive or incompatible with engine swaps. The one-piece design simplifies DIY installation by eliminating alignment issues common with multi-section piping. Home mechanics benefit from the corrosion-resistant properties of the anodised aluminium in varied weather conditions without requiring specialised maintenance beyond occasional cleaning.

Benefits and Buying Value

This component addresses specific limitations in standard automotive systems while offering durability through its material choices and construction method.

Reuse and Low Maintenance

The aluminium construction with anodised finish provides inherent corrosion resistance that maintains functionality across multiple seasons without degradation. Unlike mild steel components that might rust or painted surfaces that could chip, the anodised aluminium retains its protective qualities throughout the product's service life. The welding-free construction eliminates seam failures that would require component replacement, offering longer usable life through the inherent strength of single-piece manufacturing.

Why Choose This Product

This elbow offers a targeted solution for lateral engine configurations where standard 90-degree bends might not provide sufficient clearance or flow capacity. The plus-sized diameter accommodates increased airflow requirements in modified applications without requiring custom fabrication. The integrated aluminium construction delivers reliable performance without the potential failure points of welded assemblies, making it suitable for both performance enthusiasts and practical upgraders seeking durable aftermarket components.
