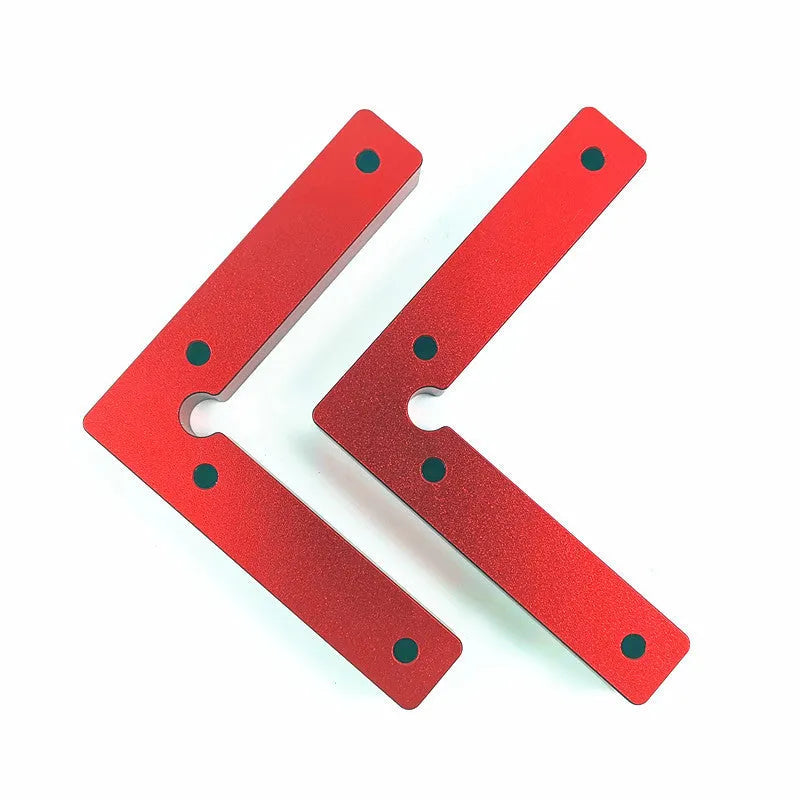

Aluminium alloy right angle positioning block for woodworking jigsaw and clamp fixture applications

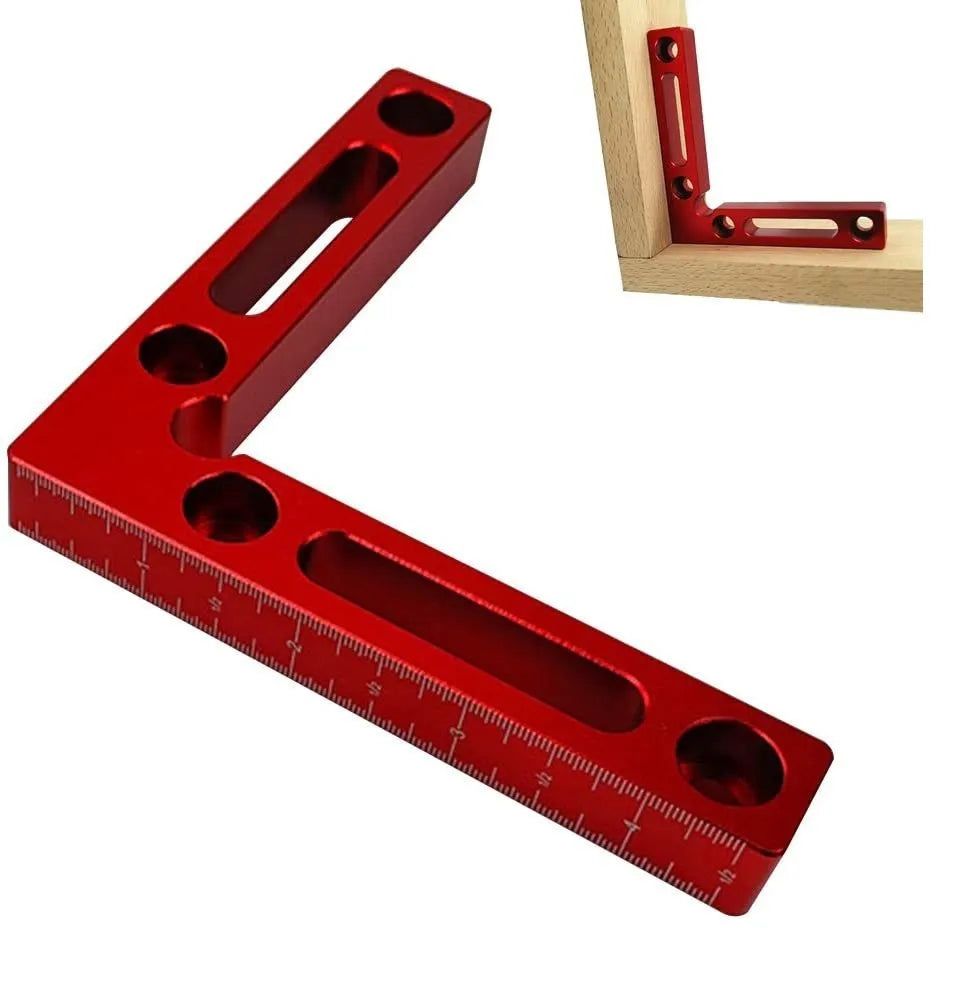

This precision-engineered right angle positioning block serves as a specialised fixture for woodworking projects requiring exact 90-degree joints. Constructed from aluminium alloy 6061, it provides a stable and accurate reference surface for various clamping and assembly operations. The block's solid design ensures it maintains its form under pressure, while the precisely machined surfaces offer reliable contact points for workpieces. Whether you're creating furniture joints, picture frames, or cabinet components, this tool helps maintain perpendicular alignment throughout the assembly process. Its measuring scales add an extra layer of precision, allowing for consistent positioning of multiple pieces without constant measurement checks.

Features and Construction

The positioning block combines material strength with practical design features tailored for woodworking applications. Its construction focuses on providing a reliable fixture that can withstand repeated use in workshop environments while maintaining accuracy.

Material and Build

Manufactured from aluminium alloy 6061, this positioning block benefits from the material's favourable strength-to-weight ratio and machining characteristics. The alloy maintains dimensional stability under typical workshop conditions and resists the minor impacts that can occur during clamping operations. The manufacturing process emphasises precision engineering, resulting in square corners and flat surfaces that provide true 90-degree references. Quality assurance measures during production ensure each block meets the specified tolerances required for accurate woodworking applications.

Size and Practical Fit

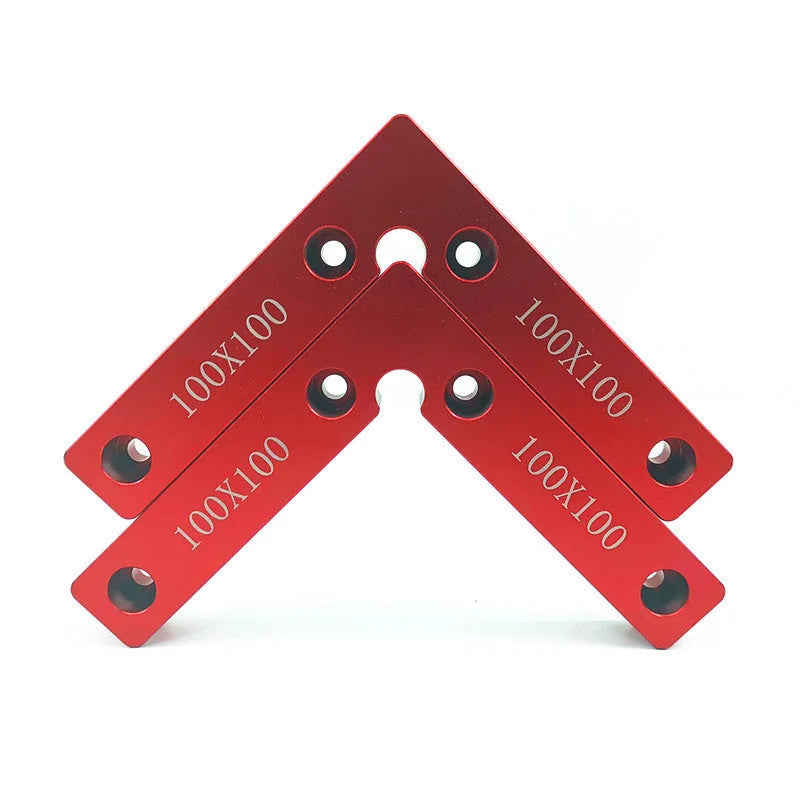

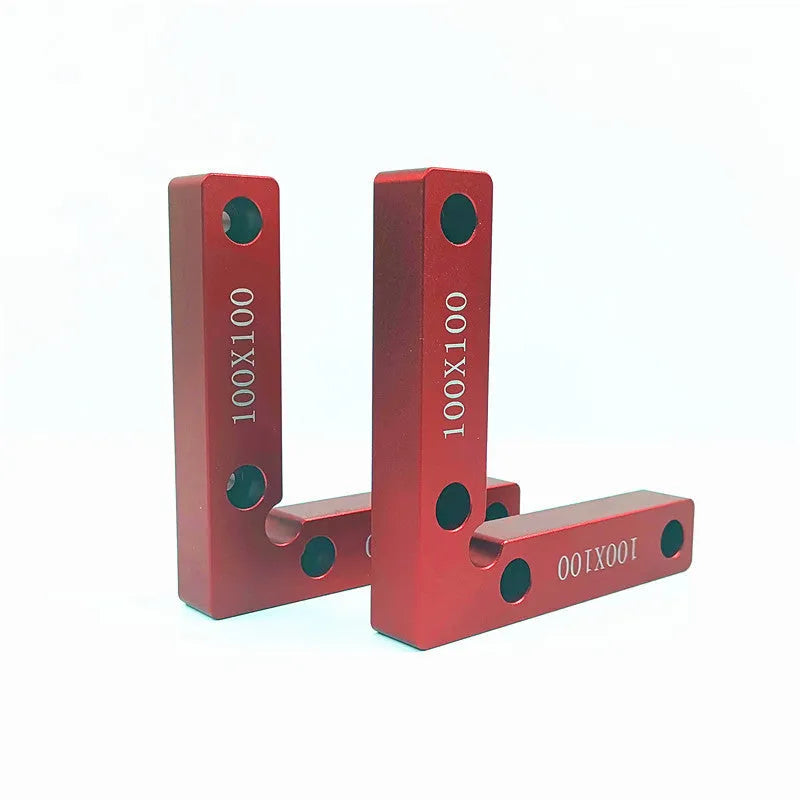

The standard positioning block measures 40mm thick by 130mm wide by 210mm long, providing substantial surface area for workpieces to register against. Two square size options are available: a 100mm x 100mm configuration and a 120mm x 120mm configuration. These square formats offer versatility for different project scales, with the larger option providing more contact area for bigger workpieces. The block's dimensions make it compatible with common workshop clamps while remaining manageable on the workbench. The thickness provides sufficient rigidity to prevent flexing when pressure is applied during clamping operations.

Uses and Placement

This positioning tool addresses specific needs in woodworking where accurate right angles are essential for proper joint formation and assembly. Its applications range from professional workshop settings to serious hobbyist projects requiring precise results.

Event or Professional Use

In professional woodworking environments, this positioning block serves as a time-saving fixture for batch production of components requiring 90-degree joints. The accurate measuring scales allow for rapid setup and consistent positioning across multiple pieces, reducing measurement time for each individual component. For furniture makers creating cabinets, drawers, or frame constructions, the block provides a reliable reference that can be incorporated into workflow systems. Its aluminium construction ensures it remains stable through temperature variations that can occur in workshop environments, maintaining accuracy throughout production runs.

Everyday Home Use

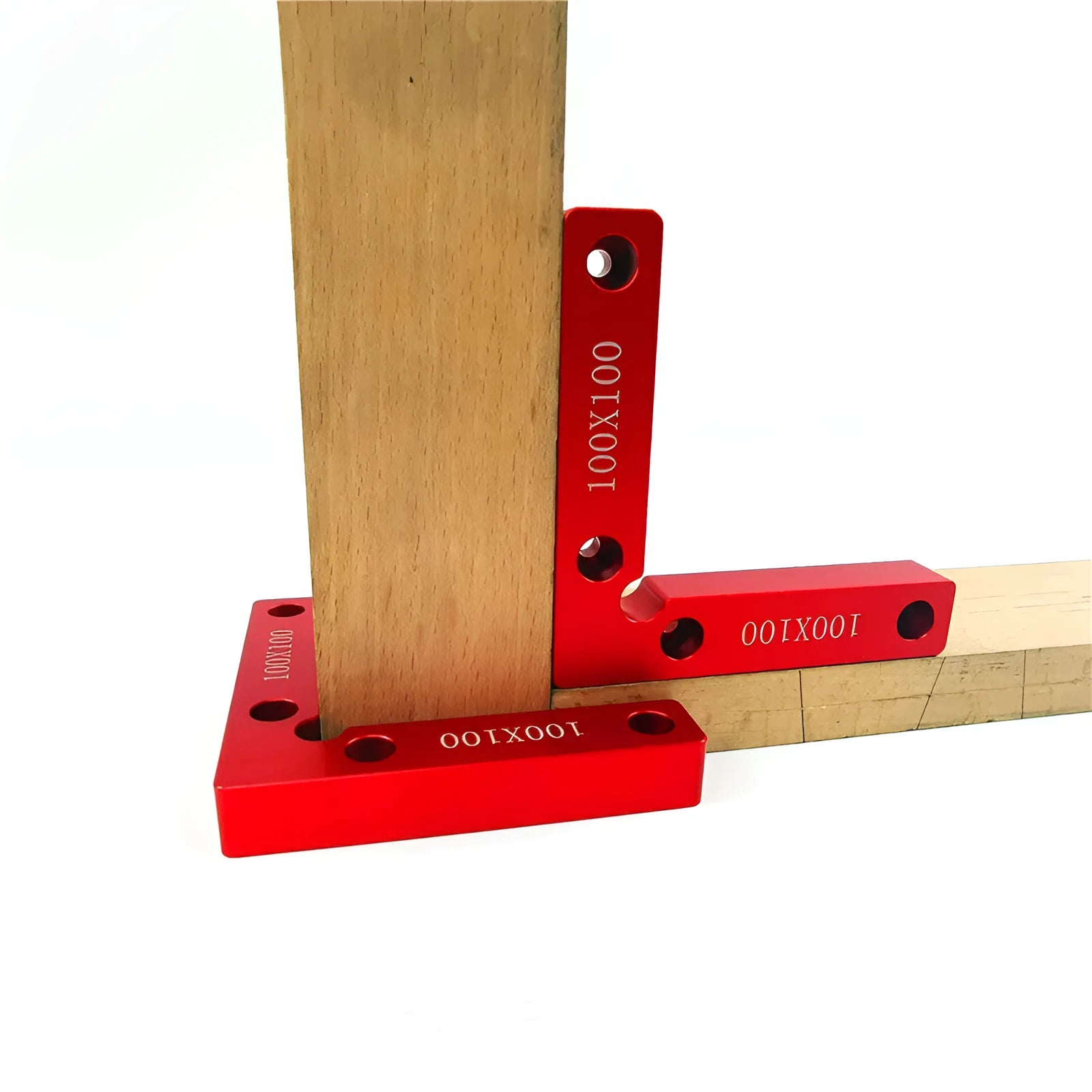

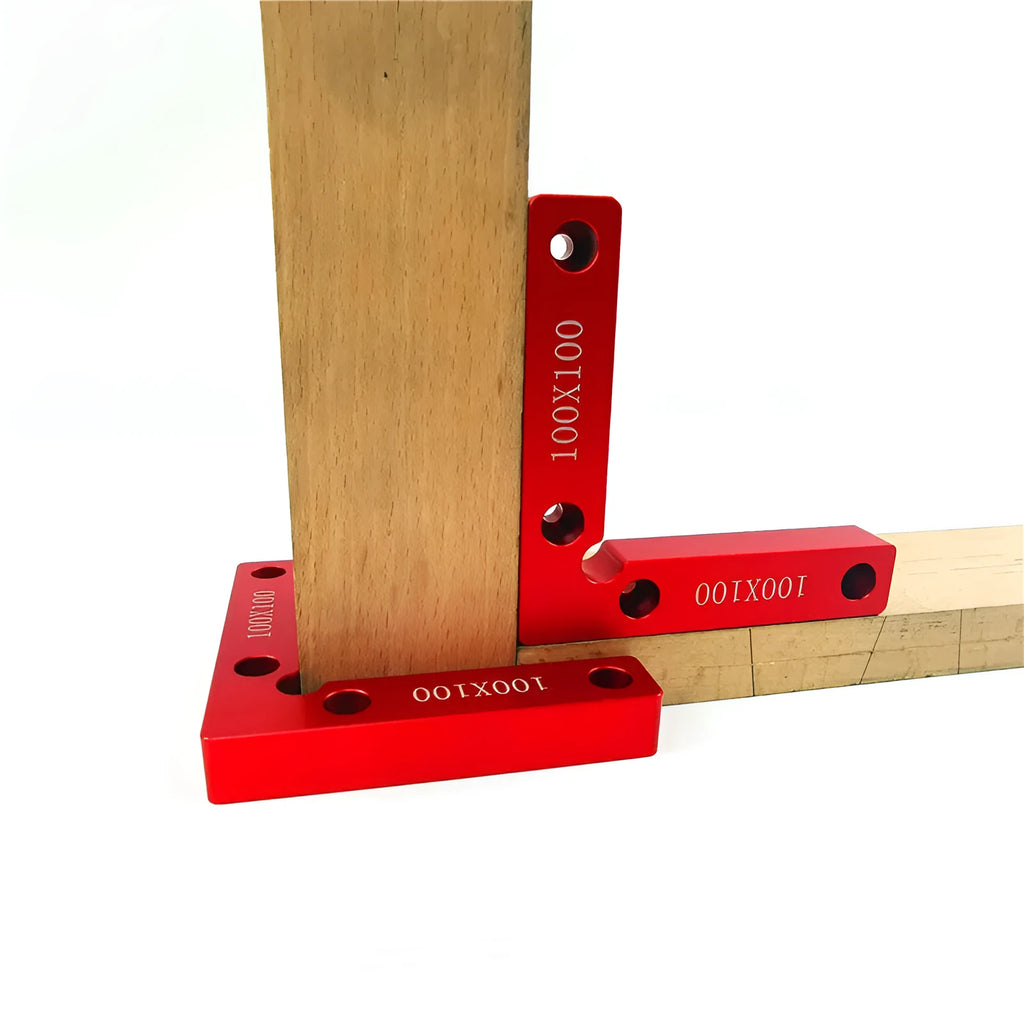

For woodworking enthusiasts and home workshop users, this positioning block simplifies the process of creating square joints without requiring specialised machinery or complex setup procedures. It's particularly useful for picture frame construction, small box projects, or repair work where existing components need to be squared up. The block's self-contained design means it doesn't require permanent mounting, making it suitable for workshops with limited bench space. When combined with common bar clamps or quick-release clamps, it creates an effective right-angle clamping station that can be set up and put away as needed for different projects.

Benefits and Buying Value

The positioning block offers practical advantages for woodworkers seeking consistent results without investing in larger, more permanent workshop fixtures. Its design focuses on solving specific alignment challenges in a straightforward, reusable manner.

Reuse and Low Maintenance

As a solid aluminium fixture, this positioning block is designed for repeated use across multiple projects without degradation of its reference surfaces. The material resists denting and deformation under normal clamping pressures, ensuring long-term accuracy. Maintenance requirements are minimal, typically involving only occasional cleaning to remove wood dust or glue residue. The block doesn't require calibration or adjustment over time, as the machined surfaces maintain their dimensional accuracy through regular use. This makes it a practical investment for woodworkers who regularly work with right-angle joinery.

Why Choose This Product

This aluminium right angle positioning block provides a specialised solution for woodworkers needing reliable 90-degree references during assembly operations. Its combination of aluminium alloy construction, precise manufacturing, and practical sizing options addresses the core requirements of jigsaw and clamp fixture applications. The inclusion of measuring scales adds functionality beyond basic square references, while the two size options accommodate different project scales. For those seeking to improve joinery accuracy without complex setup procedures, this tool offers a straightforward approach to maintaining perpendicular alignment throughout the woodworking process.
