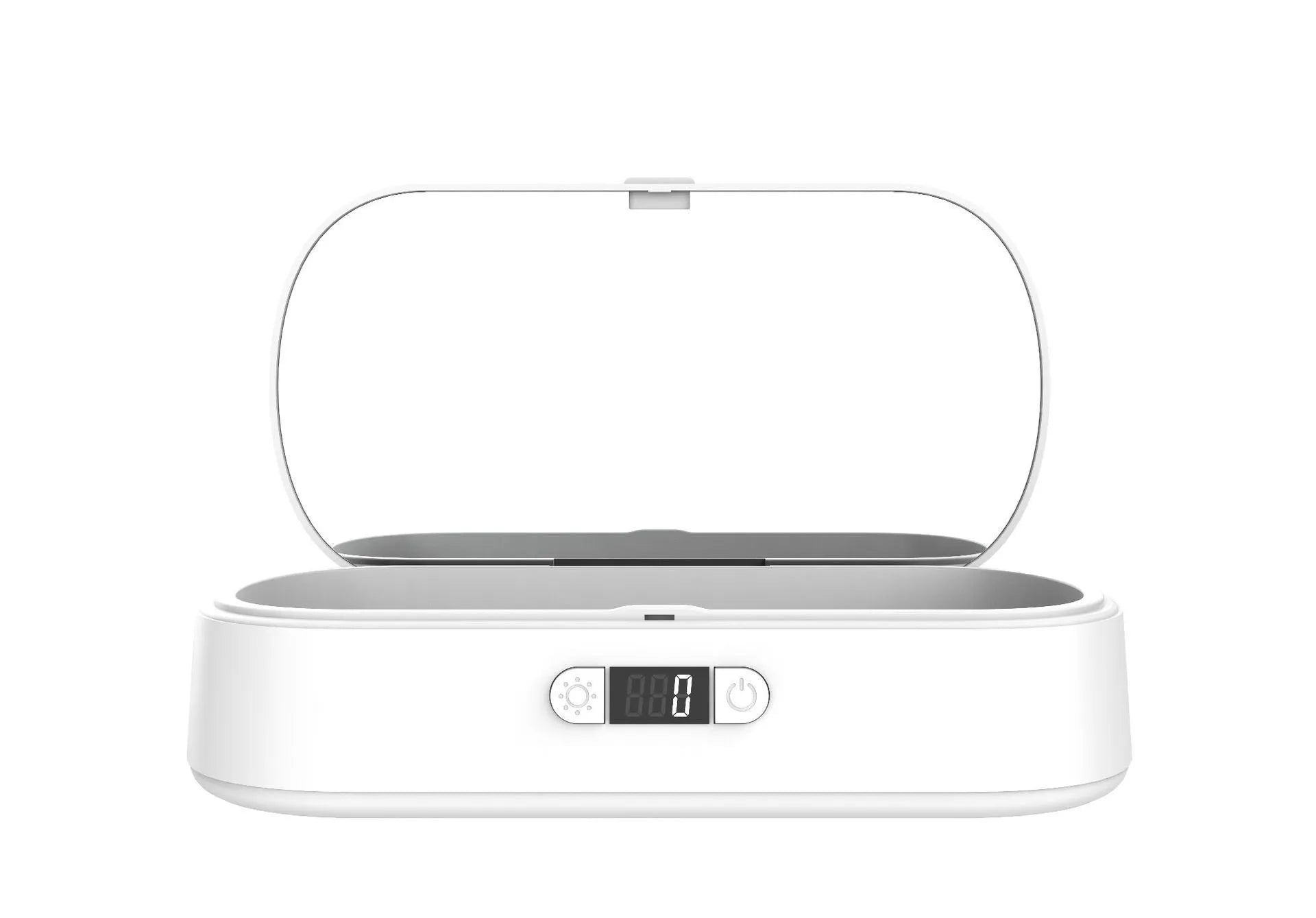

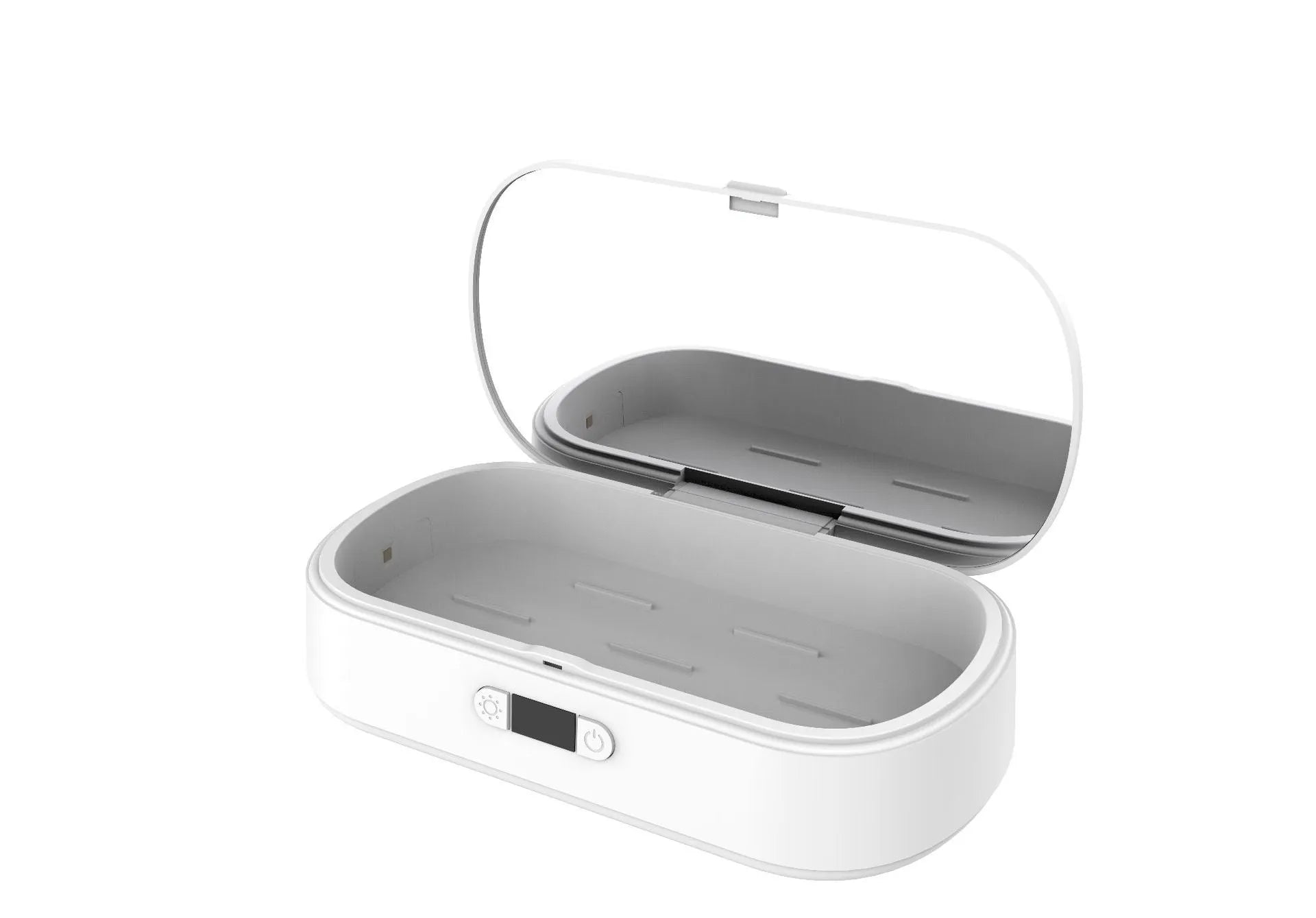

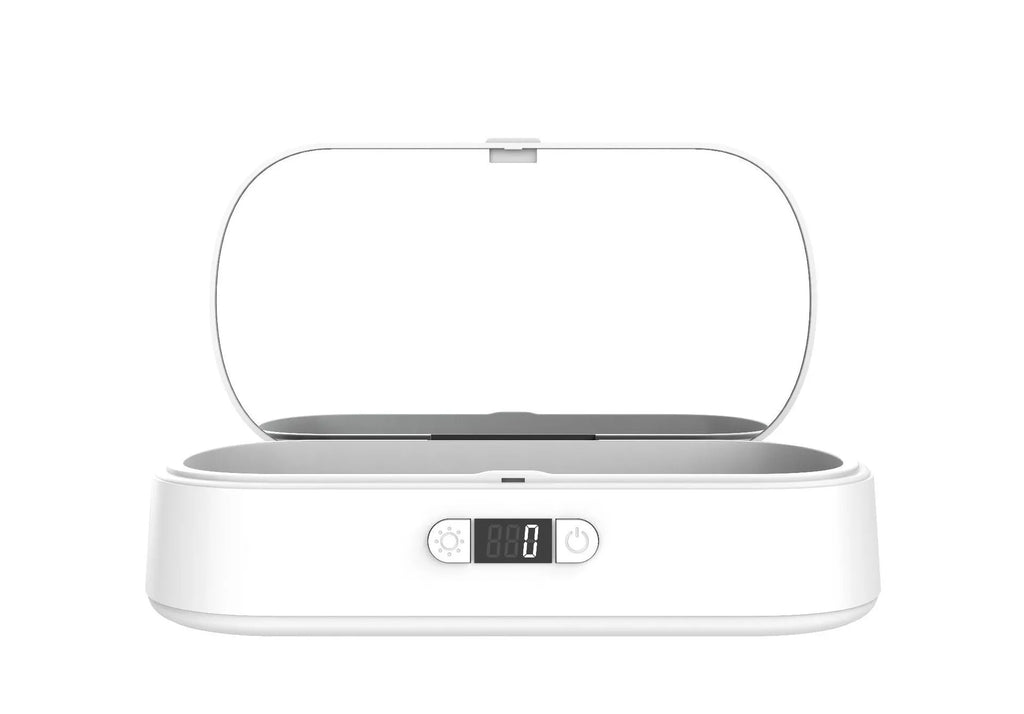

ABS Plastic UV Sterilizer Box with Wireless Charging and Aromatherapy Function

This multifunctional sterilisation device combines ultraviolet disinfection technology with wireless charging capability in a compact 23cm unit. Designed for sanitising small personal items, it uses both UVA and UVC wavelengths to target bacteria on surfaces without chemical agents. The integrated wireless charger provides up to 10W of power output, allowing you to maintain device battery levels during the disinfection process. With its USB-powered operation and aromatherapy option, this unit serves as a versatile hygiene solution for homes, offices, or travel use.

Technical Specifications and Performance

The steriliser operates with precise technical parameters designed for effective sanitisation and convenient charging. Each component has been engineered to work within documented measurement ranges.

Power and Charging Capabilities

The unit has a maximum total power consumption of 15W and accepts input voltage through USB connection at either DC5V 2A or QC 9V 2A. Its integrated 650mAh battery supports the system functions, while the wireless charging component delivers up to 10W maximum output. Wireless charging operates with 75% efficiency within a distance of under 8mm from compatible devices, making it suitable for most Qi-enabled smartphones and accessories.

UV Disinfection System

Ultraviolet sterilisation is provided through a dual-wavelength system with separate outputs. The UVA ultraviolet component operates at wavelengths between 390-410nm, while the UVC ultraviolet component uses 260-280nm wavelengths. Both systems work with a maximum power output of 1W, providing targeted disinfection for surfaces exposed within the enclosed chamber. This combination addresses different types of microorganisms through varied ultraviolet approaches.

Physical Construction and Design

Manufactured from white ABS plastic, the unit measures approximately 23cm in length, 12.7cm in width, and 5.5cm in height. This material choice provides structural stability for the electronic components while maintaining a clean aesthetic appearance. The dimensions allow placement on bathroom counters, bedroom dressers, or office desks without occupying excessive space.

Practical Applications and Use Cases

The steriliser's design supports multiple applications across different environments and usage scenarios. Its combination of features addresses specific hygiene concerns with practical solutions.

Personal Electronics Sanitisation

Mobile phones, wireless earphones, and smartwatches accumulate bacteria through daily handling and exposure. This unit provides regular disinfection without damaging electronic components, using UV light that penetrates surface contaminants. The simultaneous wireless charging means devices can be sanitised overnight or during charging periods without additional steps.

Personal Care Item Maintenance

Toothbrushes, jewellery, and other small personal items benefit from regular ultraviolet treatment to reduce bacterial buildup. The enclosed chamber accommodates these items safely while the dual-wavelength UV system works on surfaces. The aromatherapy function can be employed alongside disinfection cycles to provide additional environmental benefits.

Travel and Portable Hygiene

With its compact dimensions and USB power requirement, the unit is suitable for travel scenarios where access to thorough cleaning facilities may be limited. Hotels, temporary accommodations, and shared spaces can benefit from having a personal sterilisation option for frequently handled items.

Operation and Maintenance Considerations

Proper use and care ensure the device functions as intended while maintaining its appearance and performance over time. These guidelines are based on the materials and specifications provided.

Setup and Daily Operation

Connect the unit to a power source using the included USB cable with either DC5V 2A or QC 9V 2A input compatibility. Place items to be sterilised within the chamber, ensuring they fit within the available space. Close the lid completely before initiating disinfection cycles to contain UV light properly. The wireless charging function works automatically with Qi-compatible devices placed within the designated area.

Cleaning and Surface Maintenance

Use the included cleaning cloth to wipe the exterior surfaces of the ABS plastic casing as needed. Avoid abrasive cleaners or excessive moisture that could affect the electronic components. Regular exterior cleaning maintains the appearance while preventing buildup that could interfere with operation.

Safety Precautions and Limitations

Avoid direct eye exposure to UV lights during operation by keeping the lid closed when the unit is active. Do not place liquids or moist items inside the chamber, as moisture can affect both disinfection effectiveness and electronic safety. The unit is designed for small personal items within the specified size range.
