PWM DC Motor Governor with 5V-35V Speed Regulation and 5A Switch Function for Precise Motor Control

This compact PWM DC motor governor provides professional-grade speed regulation for brushless DC motors in DIY electronics, robotics, and small machinery applications. Operating on a DC voltage range from 4.5V to 35V, it delivers precise control through adjustable pulse-width modulation with a 20kHz frequency. The device supports motors requiring up to 5A current and 90W power output, making it versatile for various project scales while maintaining energy efficiency with just 7µA static current during standby. Its small form factor and straightforward potentiometer-based adjustment make it accessible for both beginners and experienced electronics enthusiasts seeking reliable motor speed management.

Features and Construction

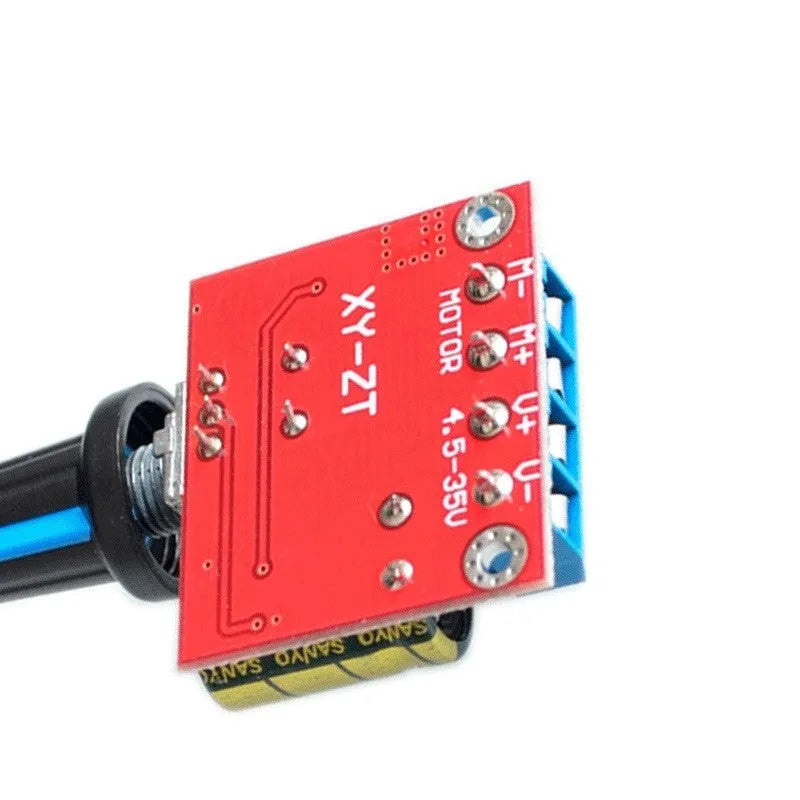

The DC motor governor combines compact design with practical functionality for electronics projects. Measuring just 30mm in length, 26mm in width (excluding the adjustment handle), and 14mm in height, it fits easily into space-constrained installations. The construction focuses on reliable DC motor control with clear operational parameters that ensure proper use and connection.

Material and Build

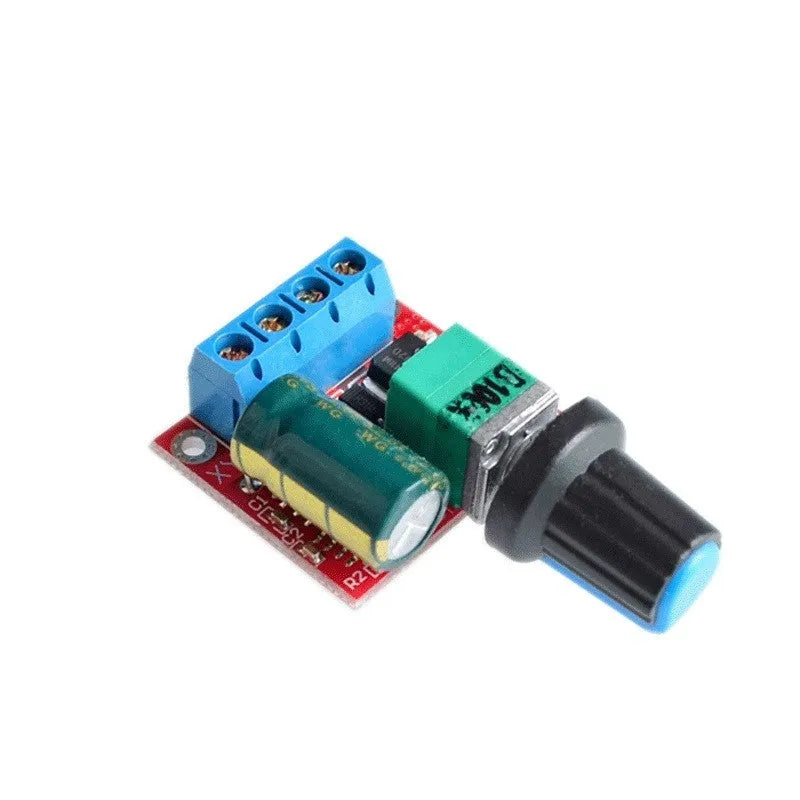

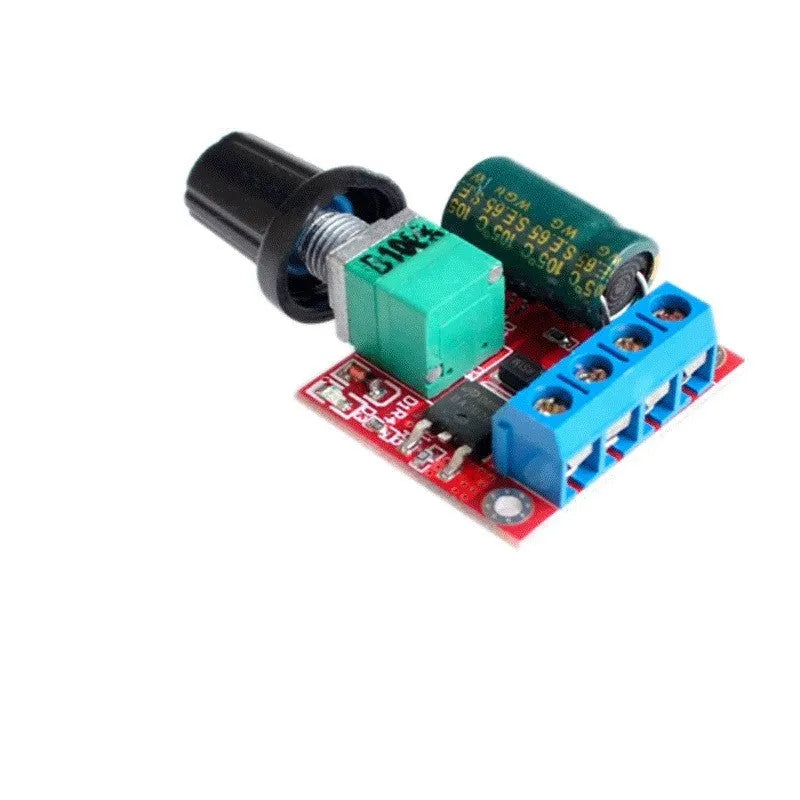

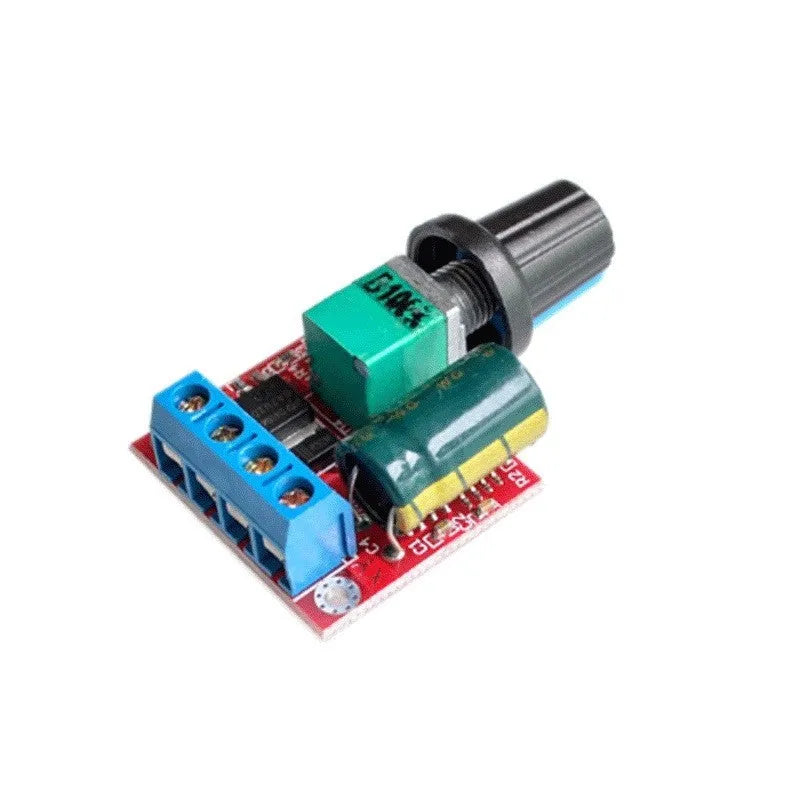

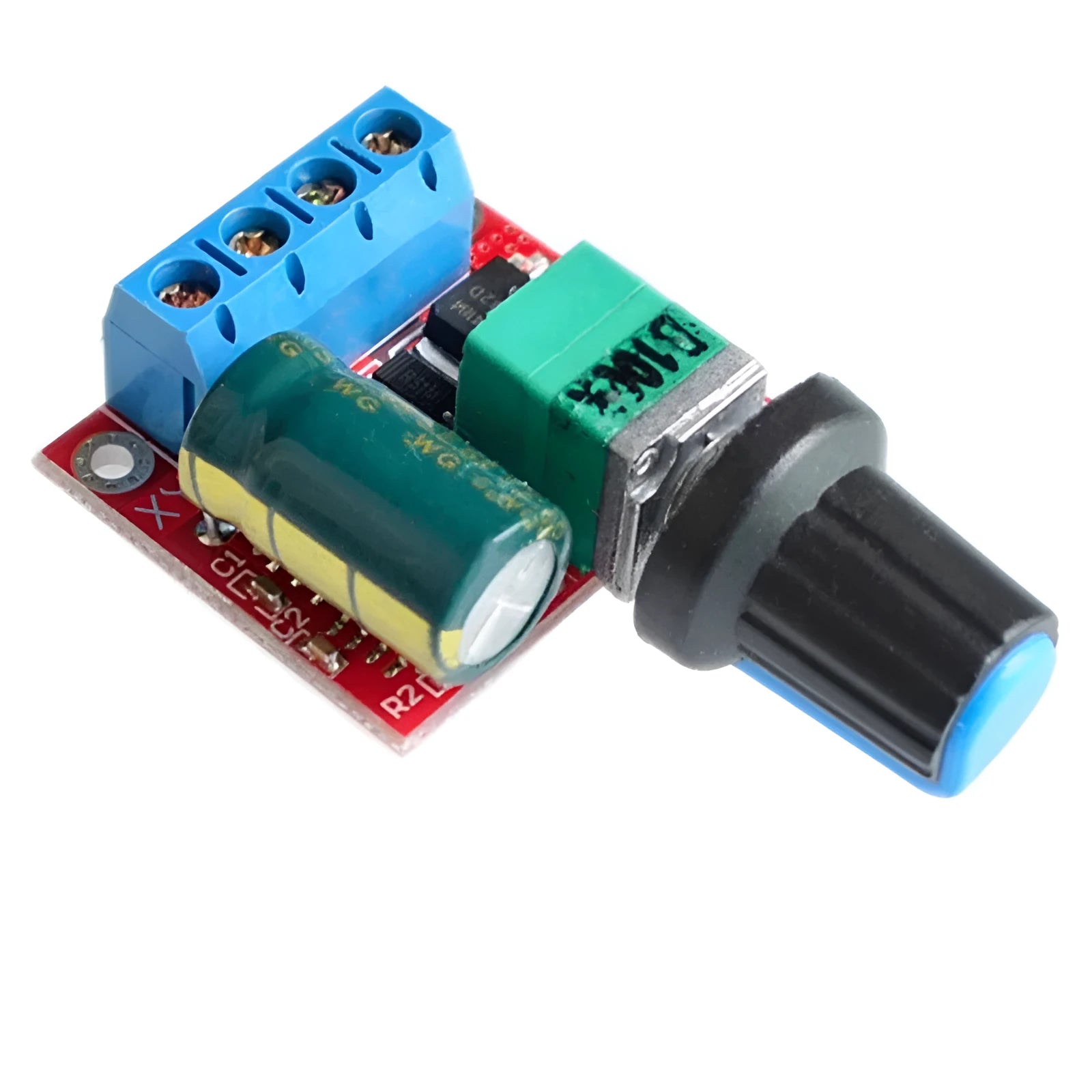

Built with electronic components designed for DC motor control applications, this governor maintains functionality across its specified voltage and current ranges. The device incorporates a potentiometer knob for user adjustment, allowing intuitive control of motor speed without complex programming or setup requirements. The physical construction supports the electrical specifications while providing durable connections for reliable operation in various project environments.

Size and Practical Fit

With dimensions of 30mm length by 26mm width (excluding handle) by 14mm height, this motor governor offers a compact solution that integrates easily into existing projects or new builds. The small footprint makes it particularly suitable for robotics, model building, and other applications where space optimization is important. Despite its compact size, it delivers full 5A output capability and handles the complete 4.5V-35V voltage range specified for diverse motor requirements.

Uses and Placement

This DC motor governor serves multiple applications where precise speed control of brushless motors enhances functionality or performance. From hobbyist projects to practical machinery, its voltage and current range supports various implementation scenarios while the compact design enables flexible placement within different systems and enclosures.

Event or Professional Use

For professional applications, the governor's 5A output capacity and 90W power handling support small machinery, laboratory equipment, and specialized tools requiring adjustable motor speeds. The 20kHz PWM frequency provides smooth control suitable for precision applications, while the wide 4.5V-35V voltage range accommodates different power systems. Professional users benefit from the clear operational guidelines that prevent common connection errors, particularly the requirement for DC-only input and proper polarity observance.

Everyday Home Use

DIY enthusiasts and hobbyists can integrate this governor into home projects like automated blinds, small fans, model trains, or custom robotics. The straightforward potentiometer adjustment makes it accessible without programming knowledge, while the compact size allows incorporation into existing builds. Home users appreciate the ability to change motor direction by adjusting wire sequences when the initial rotation doesn't match project requirements, providing flexibility in various implementations.

Benefits and Buying Value

Choosing this DC motor governor provides practical advantages for electronics projects requiring motor speed control. The combination of specifications, compact design, and clear operational guidelines offers value through reliable performance and versatile application potential across different voltage and current requirements.

Reuse and Low Maintenance

The governor's design supports repeated use across different projects due to its versatile 4.5V-35V voltage range and 5A output capacity. Proper connection following the provided guidelines - particularly avoiding AC power connections and maintaining correct polarity - helps ensure longevity and reliable operation. The low 7µA standby current contributes to energy efficiency in applications where the governor remains connected but not actively controlling motors.

Why Choose This Product

This PWM DC motor governor offers a balanced combination of capability and convenience for motor control applications. The precise 1%-100% duty cycle adjustment through the potentiometer knob provides fine-tuned speed control, while the 20kHz PWM frequency ensures smooth operation. Its compact dimensions make it suitable for projects where space is limited, yet it doesn't compromise on the 5A output current or 90W power handling. The clear voltage and connection requirements help users implement it correctly for reliable performance in their specific applications.
