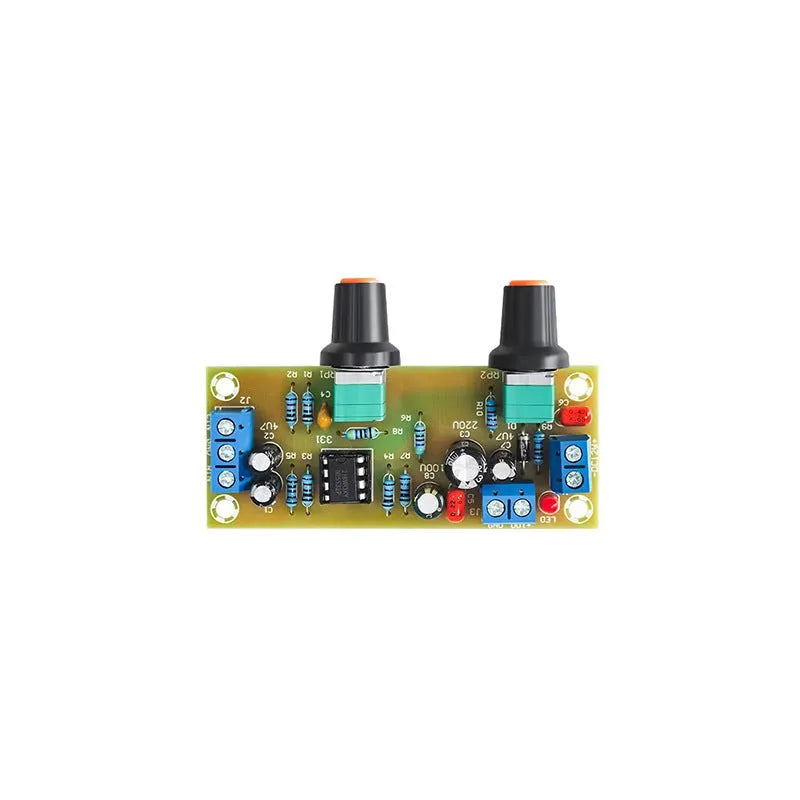

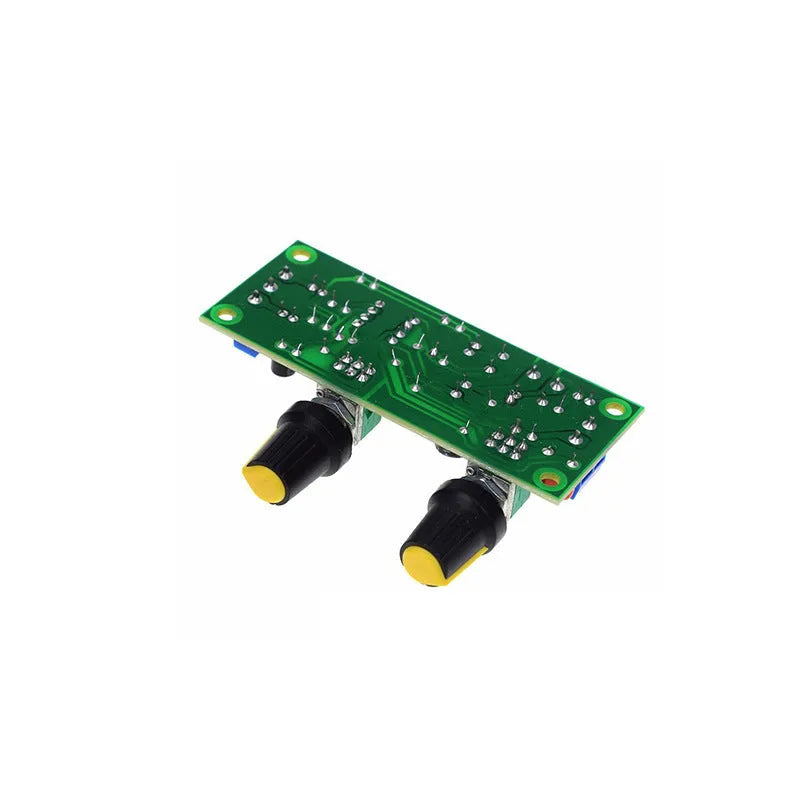

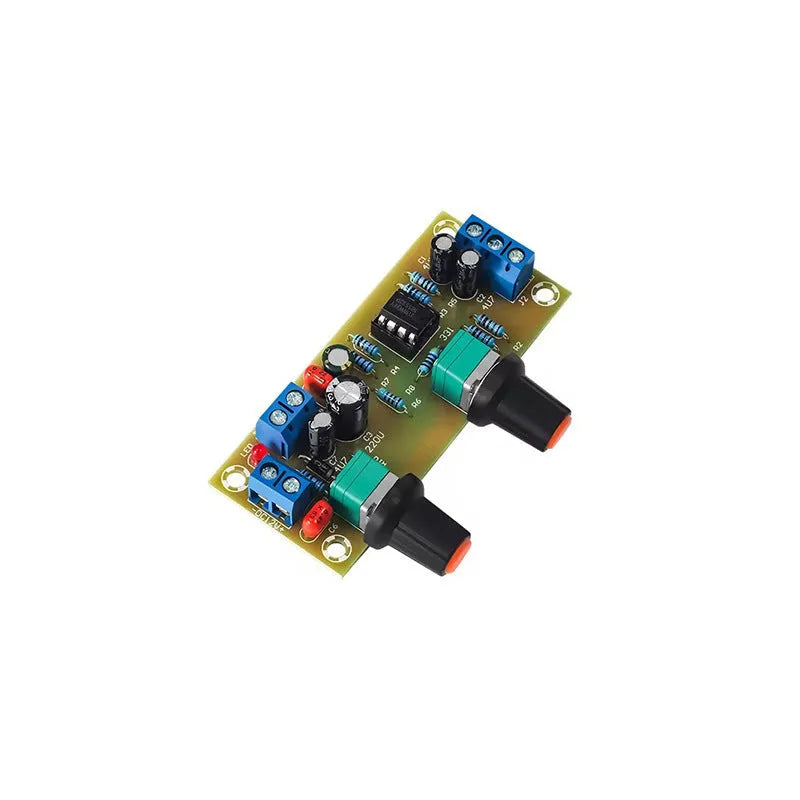

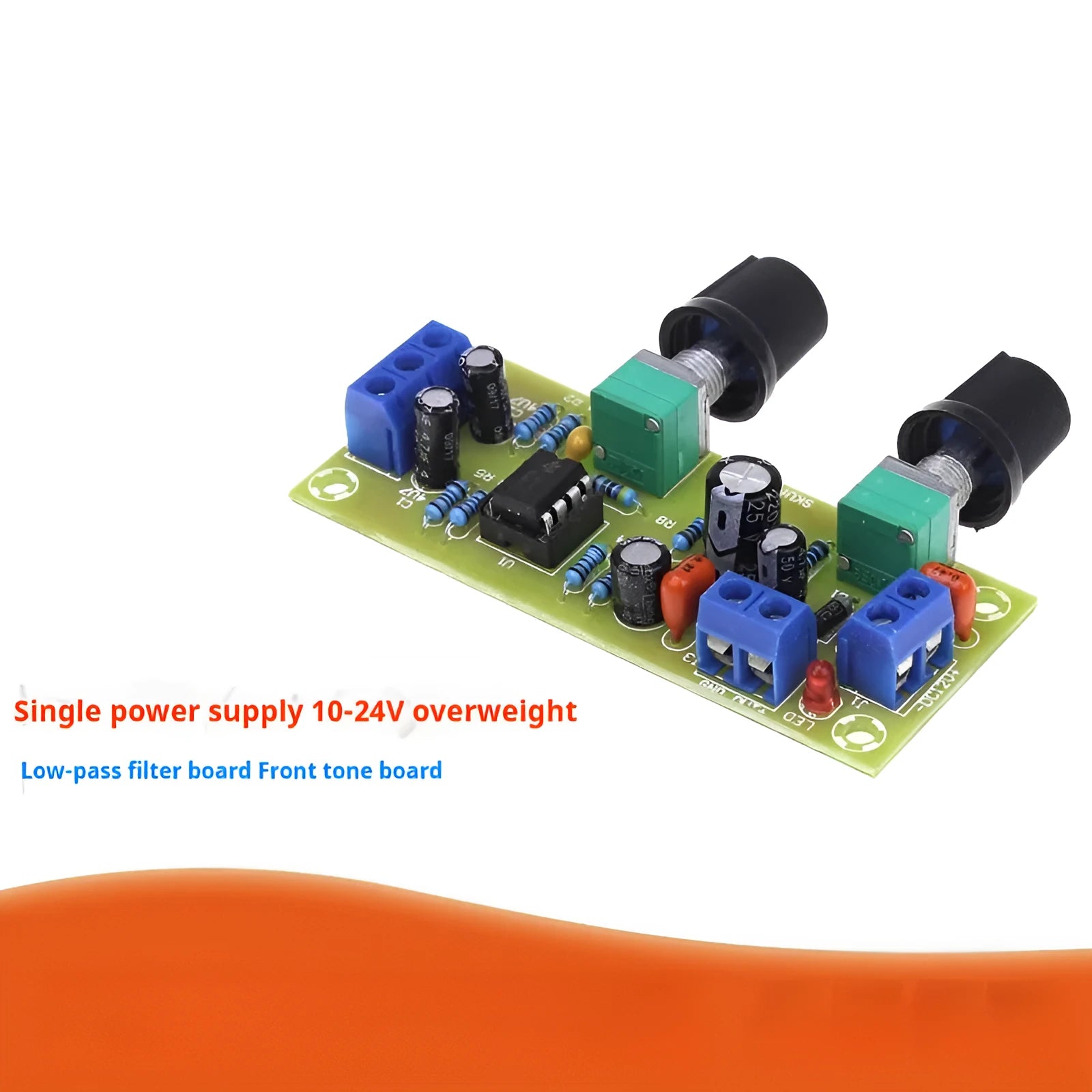

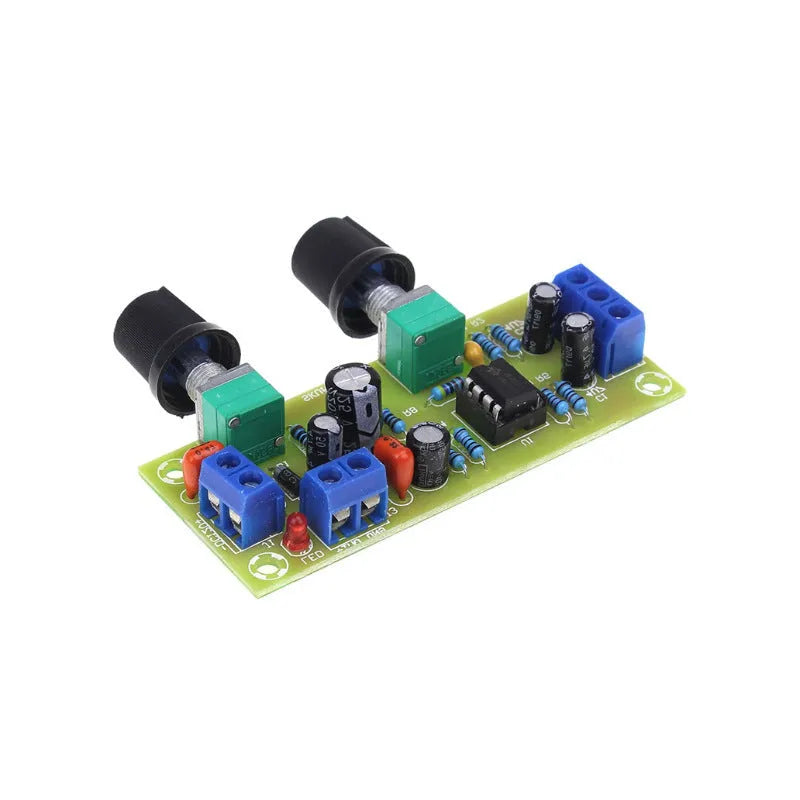

Single power supply 10-24V front stage bass boost board with 22-300Hz frequency range

This front stage audio enhancement board provides bass boost functionality for DC-powered audio systems requiring improved low-frequency response. Operating from a single 10-24V DC power source, it offers flexibility for integration into various audio setups where space constraints exist. The board's compact dimensions and precise mounting points allow installation in professional audio equipment, vehicle sound systems, or portable audio devices needing enhanced bass performance without complex power requirements.

Features and Construction

The bass boost board combines specific technical specifications with practical design elements that support straightforward integration into existing audio circuits. Its construction prioritises functionality within defined physical parameters, providing a solution for audio enhancement projects where space optimisation matters alongside performance improvement.

Material and Build

Constructed from super hardness FR-4 fibreglass board, the PCB offers a rigid substrate for component mounting and circuit stability. This material selection provides the necessary foundation for audio signal processing while maintaining structural integrity. The board's 1.6mm thickness contributes to its durability during handling and installation, supporting the electronic components mounted on its surface without excessive flexing that could affect circuit performance.

Size and Practical Fit

Measuring 78mm by 32mm, the board maintains a compact footprint suitable for integration into various audio enclosures and equipment housings. The precise plate fixing holes spaced 70mm by 24mm centre-to-centre with 3.2mm diameters facilitate secure mounting using standard hardware. With potentiometer shafts spaced 32.5mm apart, the control elements maintain ergonomic accessibility for adjustment while keeping the overall board dimensions minimal for space-constrained installations.

Uses and Placement

The board's technical specifications support several application scenarios where enhanced bass response improves audio performance. Its single power supply requirement simplifies integration compared to dual-voltage systems, while the frequency range addresses specific audio enhancement needs across different listening environments and equipment configurations.

Event or Professional Use

For professional audio applications, the board's 22Hz-300Hz bass boost range supports low-frequency enhancement in live sound reinforcement, recording studio monitoring systems, or installed sound applications. The mono audio output with support for mono or dual channel inputs allows integration into various signal chain configurations. The DC power compatibility enables operation from different power sources commonly available in professional environments, from power supplies to battery-backed systems.

Everyday Home Use

In domestic audio systems, the board can enhance bass response in home theatre setups, computer audio systems, or portable speaker modifications. The compact dimensions allow installation within existing equipment enclosures without extensive modifications. The single 10-24V DC power requirement simplifies connection to common power adapters or existing DC power rails within audio equipment, making it accessible for hobbyist audio projects and DIY enhancements.

Benefits and Buying Value

The board offers practical advantages for users seeking to improve audio performance without complex system redesign. Its specifications provide clear parameters for integration, while the construction supports reliable operation within defined electrical and physical limits. The value proposition centres on specific technical capabilities rather than generalised performance claims.

Reuse and Low Maintenance

The board's construction using industry-standard FR-4 fibreglass material supports long-term reliability in typical audio environment conditions. The defined mounting specifications facilitate secure installation that minimises vibration-related issues. With clear power requirements and input/output specifications, the board integrates predictably into various audio systems, reducing the need for troubleshooting or compatibility adjustments once properly installed.

Why Choose This Product

This bass boost board provides a solution for specific audio enhancement needs with clearly defined technical parameters. The single 10-24V DC power requirement simplifies integration compared to dual-voltage systems, while the 22-300Hz frequency range targets bass enhancement specifically. The compact 78x32mm dimensions with precise mounting holes facilitate installation in space-constrained applications, and the FR-4 fibreglass construction offers appropriate durability for typical audio equipment environments.
