Mini Pro Microcontroller Board: A Compact Core for Electronics Projects with Atmega328P

The Mini Pro electronic building block template presents a professional-grade microcontroller circuit board designed as a central component for a wide array of electronics projects. As a compact yet fully-featured development platform, it bridges the gap between simple breadboard experiments and more complex embedded systems. Based on the popular Atmel Atmega328P-AU microcontroller, it provides a reliable and accessible foundation for students, hobbyists, and developers looking to create interactive devices, automate processes, or learn about digital and analogue electronics. Its clearly defined port layout and comprehensive I/O capabilities make it a practical choice for prototyping robotics, environmental sensors, custom controllers, and educational kits, offering a solid hardware base upon which software and external circuitry can be built.

Features and Construction

The Mini Pro board is constructed around a set of core technical specifications that define its capabilities and physical form. Every feature is implemented to provide clear, measurable functionality for project integration.

Material and Build

The board is built on a standard printed circuit board (PCB) substrate, which hosts the surface-mounted and through-hole components. The most prominent component is the Atmel Atmega328P-AU microcontroller, a widely-used chip known for its balance of performance and power efficiency. Supporting this processor is a 16MHz ceramic resonator, which provides the system's clock signal for timing and execution speed. The board includes pin headers for all I/O ports, allowing for easy connection with jumper wires or direct soldering of permanent leads. A reset button is also present for restarting the microcontroller without cycling power.

Size and Practical Fit

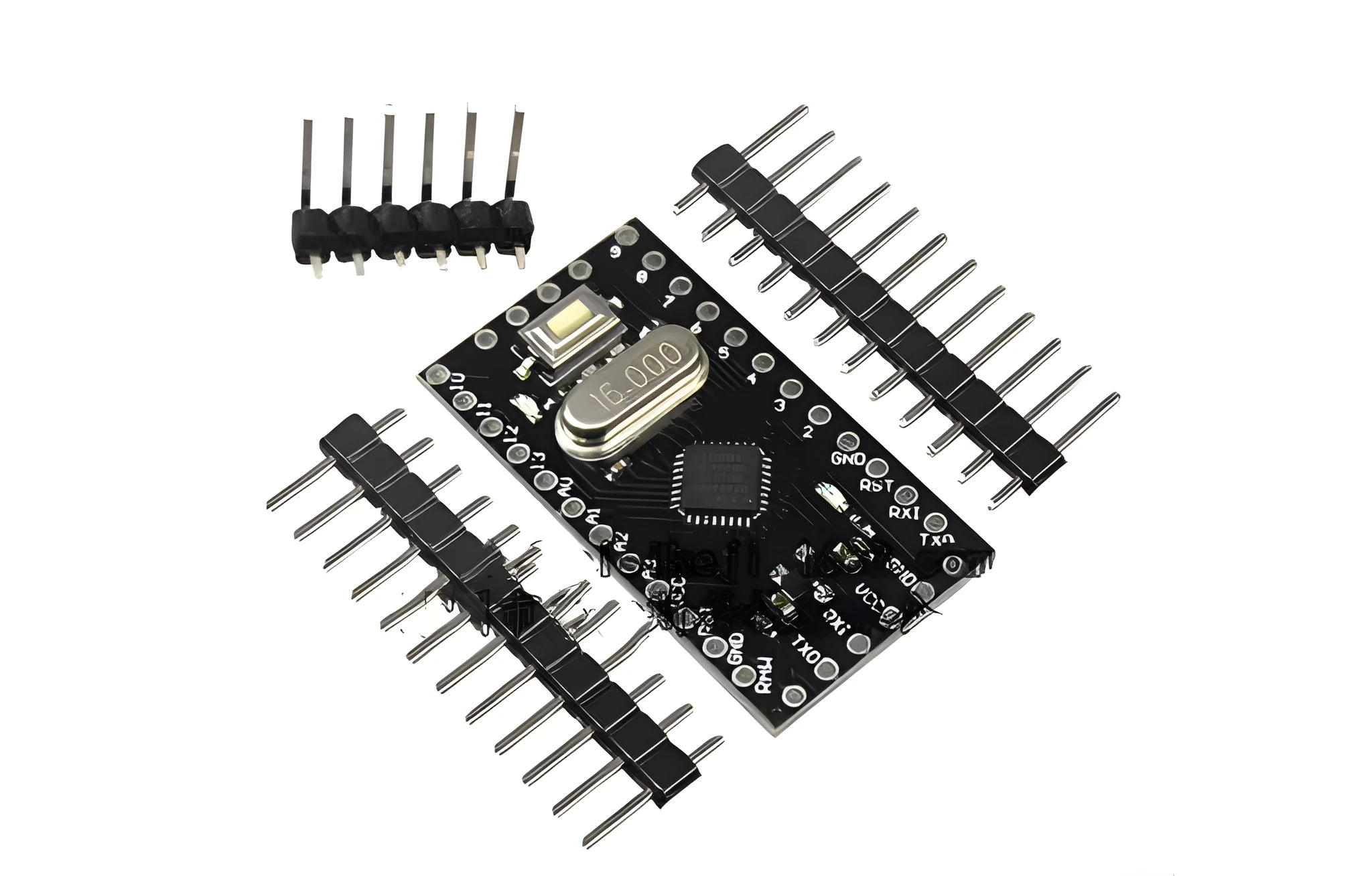

With dimensions of 33.3mm by 18.0mm, the Mini Pro board is notably compact. This small footprint is a significant advantage for projects where space is at a premium, such as within drone avionics, wearable technology, or miniaturised gadgets. The size does not compromise its connectivity, as all 14 digital and 8 analogue ports are accessible via clearly labelled pin headers along the board's edges. This layout ensures that even with its small size, connecting sensors, motors, LEDs, and displays remains straightforward, making it an ideal core module to embed into a finished project enclosure.

Uses and Placement

The combination of digital control, analogue sensing, and communication ports opens up numerous practical applications for the Mini Pro board, suitable for both one-off projects and repeated educational use.

Event or Professional Use

In professional prototyping or event-based installations, this board can serve as a reliable control unit. Its six PWM outputs allow for precise control of motor speed, LED brightness, or servo positioning, useful in exhibition displays or automated demo setups. The eight analogue inputs are capable of monitoring multiple sensors simultaneously—such as temperature, light, or potentiometers—enabling complex interactive environments. The TTL serial port facilitates communication with other devices like GPS modules, Bluetooth adapters, or a host computer for data logging, making it suitable for data collection stations or temporary monitoring systems deployed at events.

Everyday Home Use

For home enthusiasts and hobbyists, the Mini Pro is a practical tool for learning and creating. It can form the brain of a home automation project, controlling lights or fans based on sensor input. Its support for external 9V battery power means projects can be made portable and placed away from a mains outlet, ideal for garden monitoring systems, battery-operated toys, or portable data loggers. The board's compatibility with the Arduino IDE (implied by the Atmega328P chip and serial programming) means a vast library of existing code and tutorials can be leveraged, lowering the barrier to entry for beginners working on DIY electronics at home.

Benefits and Buying Value

The value of the Mini Pro board lies in its defined specification set, which provides a known quantity of I/O and processing power for planning and executing projects without guesswork.

Reuse and Low Maintenance

As a hardware platform, the board is designed for reuse across multiple projects. Once a project is complete, the board can be reprogrammed via serial download for an entirely new application. There are no consumable parts, and with careful handling, the solid-state components offer a long operational life. The minimal maintenance required involves ensuring clean electrical connections and providing power within the specified voltage range. This reusability makes it a cost-effective component for a workshop or classroom, where a single board can serve in dozens of different experiments or prototypes over time.

Why Choose This Product

Choosing the Mini Pro board is a decision based on its concrete specifications. It provides a clearly stated set of 14 digital I/O ports, 8 analogue inputs, and 6 PWM channels—quantities that allow project planners to know exactly how many sensors and actuators can be connected. The defined 16MHz operating speed and support for 3.3V-12V external DC power give predictable performance and flexibility. Compared to more abstract or simplified electronic kits, this product offers a professional, specification-driven foundation. It delivers the core microcontroller functionality without unnecessary bundled peripherals, allowing you to add only the exact sensors, displays, or motors your specific project requires.
