Dali 12V LiFePO4 Battery Protection Board: 4S BMS with Cell Balancing from 15A to 500A

This Dali Battery Management System (BMS) is a dedicated protection and monitoring circuit board for 12-volt lithium iron phosphate (LiFePO4) battery packs. It is engineered for a 4-series (4S) configuration, meaning it manages four individual LiFePO4 cells connected in series. Its primary role is to safeguard your battery investment by preventing dangerous and damaging conditions like over-charging, over-discharging, excessive current draw, and short circuits. A key integrated feature is cell voltage balancing, which works to equalise the charge across all four cells, promoting better overall pack performance and maximising usable capacity and cycle life. With a wide range of current ratings and an optional cooling fan for high-power models, it offers a configurable solution for various applications from solar energy storage to electric vehicles and portable power.

Features and Construction

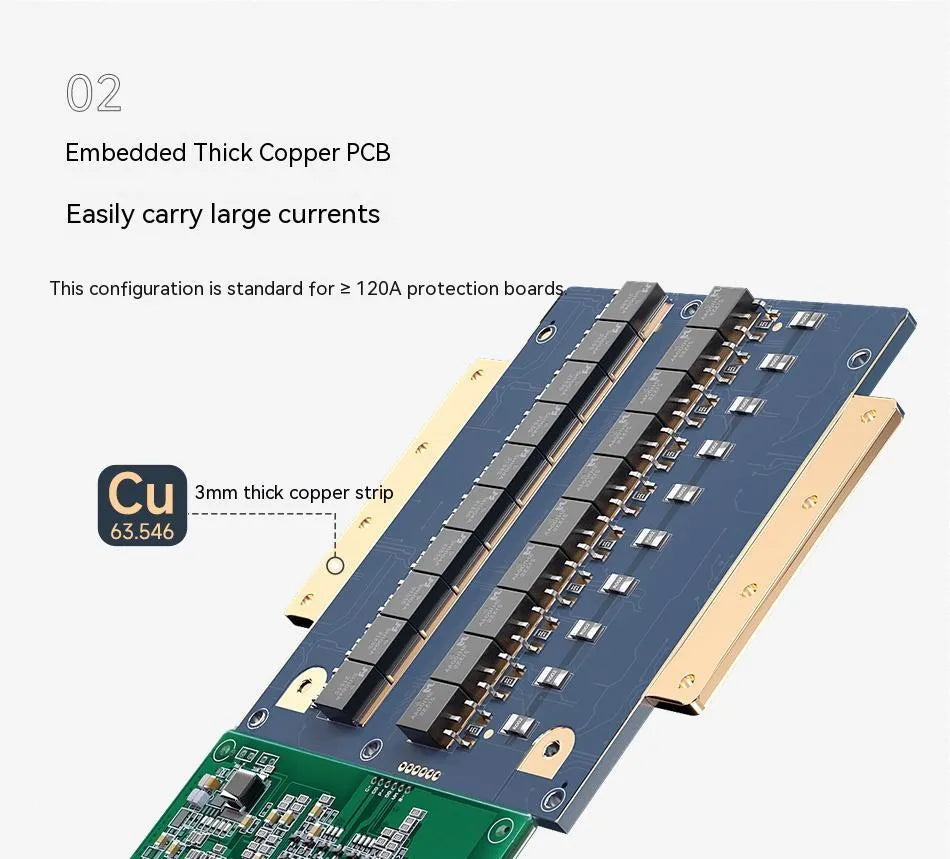

The Dali BMS is built around a core set of protection features essential for safe lithium battery operation. Its construction is based on a printed circuit board (PCB) populated with the necessary control integrated circuits, MOSFETs for switching high currents, and balancing resistors. The design philosophy centres on reliability and simplifying installation for the end-user.

Material and Build

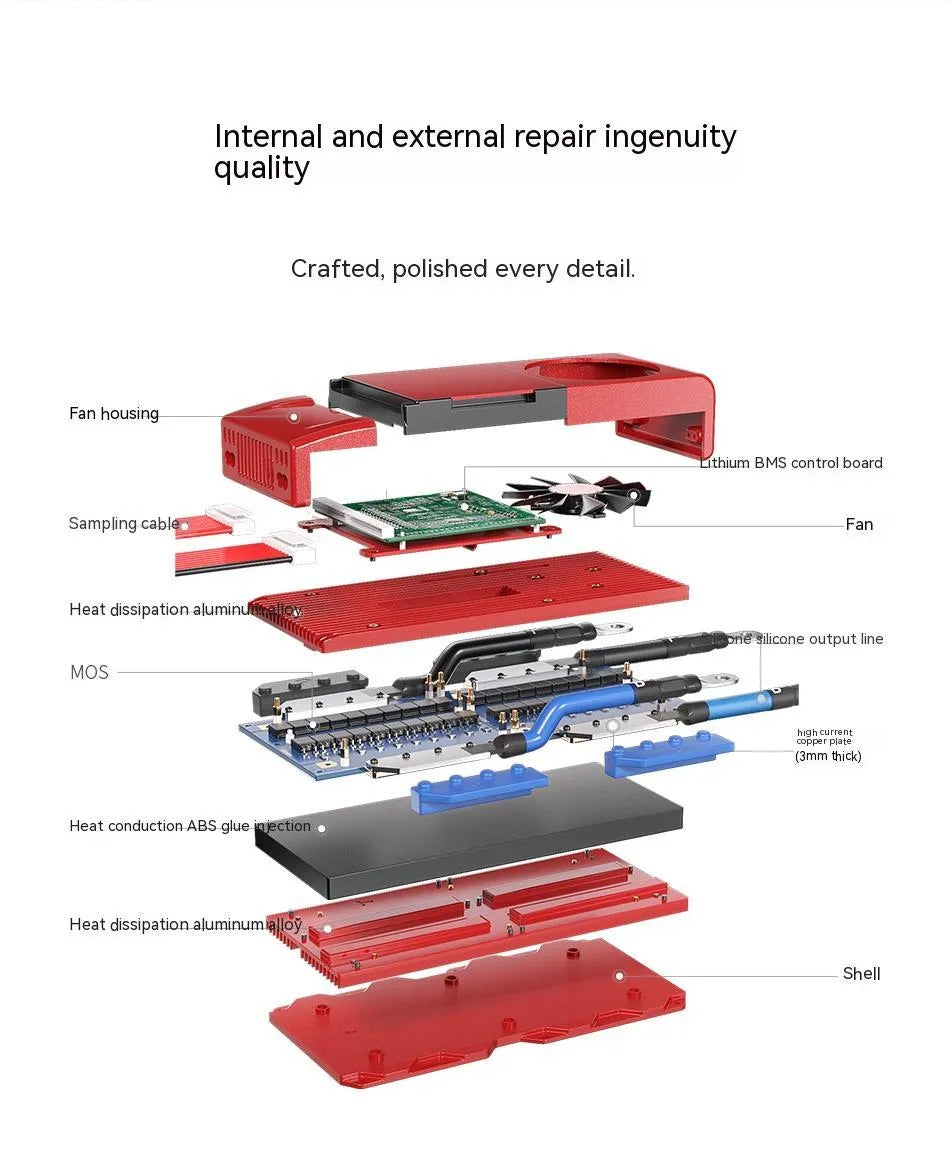

The board uses standard electronic components soldered onto a fibreglass PCB. For models rated at 80 Amps and higher, the build includes a substantial aluminium heat sink to dissipate the thermal energy generated by the high-current MOSFETs during operation. On the fan-cooled variants (available for models 80A and above), this heat sink is paired with a DC cooling fan to actively move air and enhance cooling efficiency, which is crucial for maintaining performance under sustained high loads.

Size and Practical Fit

While specific physical dimensions are not detailed, the board is designed to be mounted in-line with your battery pack. The "same-port" design is a significant practical feature; it means the charging and discharging circuits share a single connection port on the BMS. This eliminates the need for separate charge and discharge ports, simplifying the wiring harness and reducing potential connection errors during installation, making it a more user-friendly option for DIY battery builders.

Uses and Placement

This protection board is versatile and suits any application where a reliable, protected 12V LiFePO4 battery pack is needed. Its placement is always between the battery cells and the load/charger, acting as a gatekeeper for all power flowing in and out of the pack.

Event or Professional Use

For professional, commercial, or demanding event applications, the high-current models (100A to 500A) with optional cooling fans are ideal. These can support electric golf carts, forklifts, marine trolling motors, or substantial off-grid solar power systems where continuous, high power draw is required and operational reliability is paramount. The active cooling helps ensure stable operation even during extended periods of use.

Everyday Home Use

For home and hobbyist applications, the lower to mid-range current models (15A to 60A) provide ample protection. These are perfectly suited for solar panel storage batteries, home backup power systems, RV/Caravan power, electric scooters, bikes, and portable power stations. The balancing function is particularly valuable in these scenarios, as it helps maintain the health of the battery pack over many charge-discharge cycles, which is essential for long-term value.

Benefits and Buying Value

The value of a BMS lies in its ability to protect a much more expensive asset: the lithium battery pack itself. By preventing failure modes, it directly contributes to the pack's safety, longevity, and consistent performance.

Reuse and Low Maintenance

A well-protected LiFePO4 battery pack can deliver thousands of cycles. This BMS supports that longevity through its balancing function, which mitigates the capacity loss that occurs when cells drift out of voltage sync. By maintaining cell balance, the pack's full capacity remains usable for longer, and the risk of a single weak cell causing the entire pack to fail is reduced. This translates to less frequent battery replacement and lower long-term cost.

Why Choose This Product

Choosing this Dali BMS comes down to its specific design for LiFePO4 chemistry, its wide selection of current ratings, and its practical same-port design. It allows you to precisely match the protection to your project's power needs, from a small 15A system to a robust 500A setup. The availability of fan-cooled versions for high-power applications provides an added layer of thermal reliability. It offers a straightforward, feature-complete protection solution for anyone building or maintaining a 12V LiFePO4 battery system.
