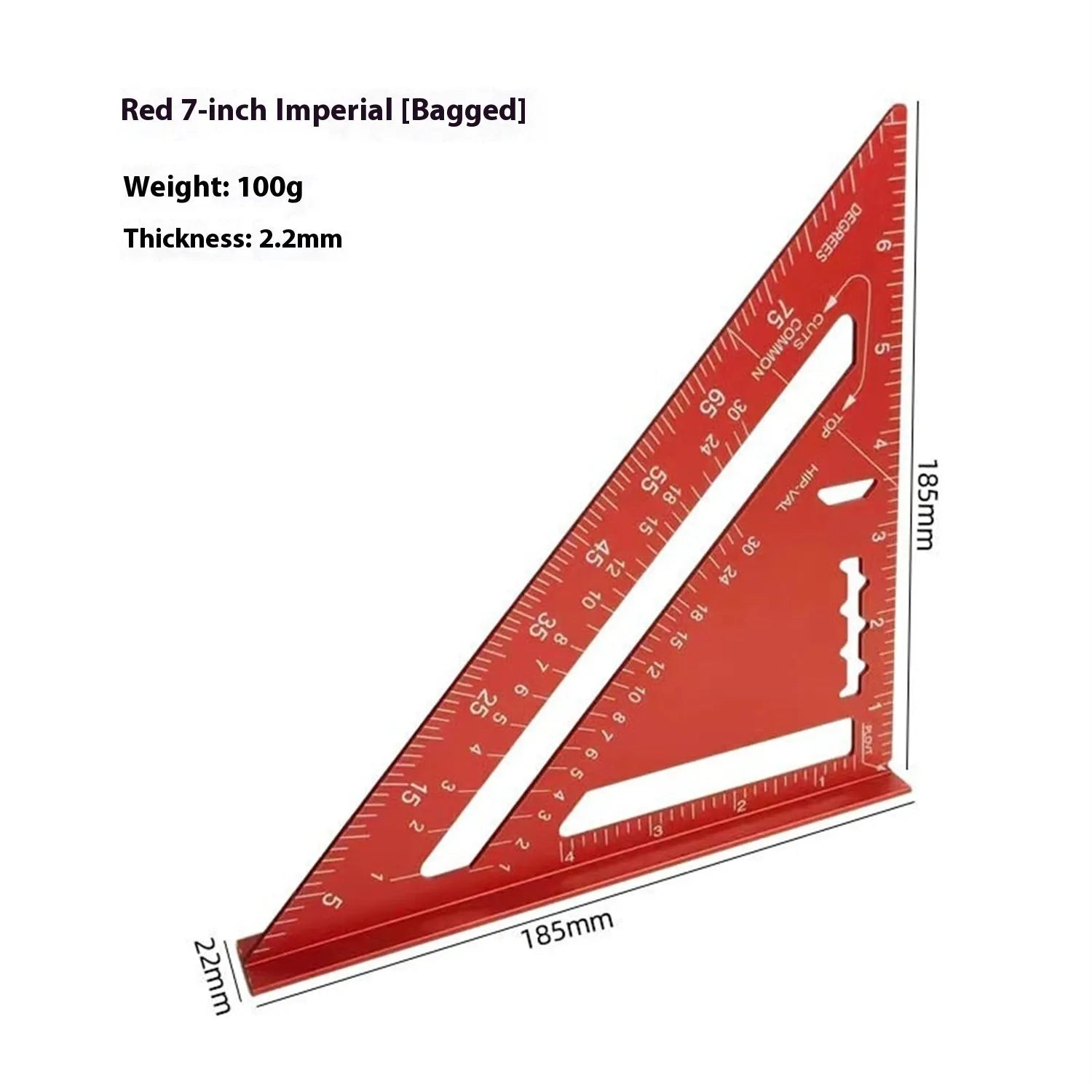

7inch Red Combination Angle Ruler for Civil Surveying and Technical Drafting

This red combination angle ruler provides a precise and durable tool for professionals and students engaged in civil surveying, architectural drafting, and technical drawing. Its core strength lies in its straightforward construction: a 7inch length of rigid aluminium metal, finished with a red anodised coating and engraved on both sides with clear metric scales in centimetres and millimetres. This design prioritises clarity and resilience for fieldwork and studio tasks, offering a reliable reference for linear measurements and angle work without complex mechanisms. The product is supplied as a two-piece set, adding value for users who require a spare or work with multiple scales simultaneously, and it arrives protected in a transparent storage bag.

Features and Construction

The ruler's utility is built on a few key, clearly defined specifications. Its 7inch length is a practical choice, balancing portability with a useful measurement range for common tasks. The construction from aluminium metal ensures the tool remains straight and true under the pressures of regular use, such as guiding a pencil or being used as a straightedge for plotting.

Material and Build

The ruler is fabricated from aluminium, a metal chosen for its favourable strength-to-weight ratio and resistance to corrosion. This material provides the necessary rigidity to maintain a true edge, essential for accurate measurement transfer and line drawing. The surface undergoes an anodising process, resulting in the distinctive red finish. This anodised layer not only enhances the metal's durability against scratches and wear but also creates a non-reflective, coloured background that sharply contrasts with the engraved white metric markings, significantly improving readability in various environments.

Size and Practical Fit

With a specified length of 7 inches, this ruler fits comfortably in a toolkit, document tube, or on a standard drawing board without being cumbersome. Its thin profile, as noted in the source description, further enhances its portability and makes it easy to use alongside other drawing instruments. The dual-sided engraving means both edges of the ruler are functional, providing immediate access to metric scales without needing to flip the tool over, which can be particularly useful when working quickly or in confined spaces.

Uses and Placement

This tool is designed for applications where precise linear and angular measurement is paramount. Its design caters to both formal technical work and educational settings, serving as a fundamental instrument for creating and interpreting plans and diagrams.

Event or Professional Use

In professional civil surveying and site engineering, this ruler can be used for quick scale checks on site plans, measuring plotted distances on maps, or as a straightedge for field notes. Architects and draftsmen will find it suitable for detailed technical drawing, where its metric scales facilitate accurate dimensioning and scaling on drawings. The red colour and clear engraving help reduce eye strain during long sessions of detailed work.

Everyday Home Use

For students studying design, engineering, or mathematics, this ruler serves as a reliable tool for coursework, technical drawings, and geometry projects. DIY enthusiasts and model makers can also use it for planning and measuring projects that require precision, such as scale models or furniture plans. The two-piece set is especially beneficial in educational or shared workshop environments.

Benefits and Buying Value

The value of this combination angle ruler stems from its focused design, material durability, and practical feature set that directly supports measurement accuracy and long-term usability.

Reuse and Low Maintenance

The aluminium construction and anodised finish are inherently low-maintenance. The tool does not require special care beyond protection from extreme force or bending. Wiping it clean with a dry cloth is sufficient to keep the scales legible. Its durability suggests it can be a long-lasting addition to a toolkit, resisting the wear that can render plastic rulers inaccurate over time.

Why Choose This Product

This product is chosen for its clear specification match: a metal ruler of a defined 7inch length with dual-sided metric markings in a high-visibility red finish. It avoids assumptions about unspecified tolerances or specialist certifications, instead offering a transparently described tool. The included two-piece set and storage bag add practical value, providing a spare and organised storage directly from purchase. It is a straightforward solution for anyone needing a dependable, legible, and robust ruler for technical measurement tasks.
